Class: TGeoMap
Declaration: property FrameStyle: TFrameStyle;

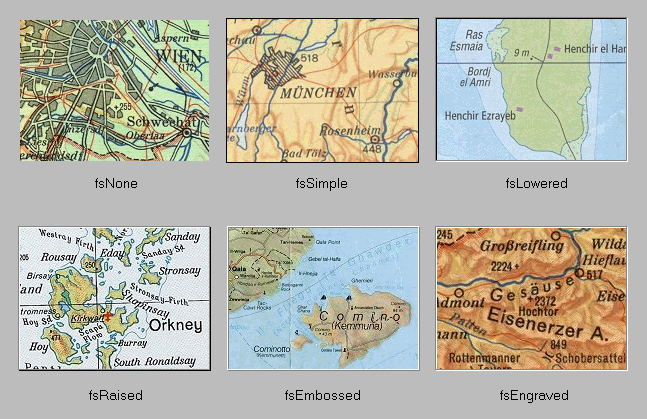

The property FrameStyle defines the style of the box enclosing the GeoMap panel. The following styles are available (see also the screen copy below):

fsNone no box at all
fsSimple a single line box around the GeoMap panel; the color of line is defined by the property ColorFrame
fsLowered a box which appears to be lowered
fsRaised a box which seem to be raised against its background
fsEngraved an engraved line is drawn around the panel
fsEmbossed the box is formed by an embossed line around panel

Last Update: 2012-Oct-20
