Unit: SDL_gauge
Class: TScaleGauge
Declaration: property IndexMode: TGaugeIndexMode;

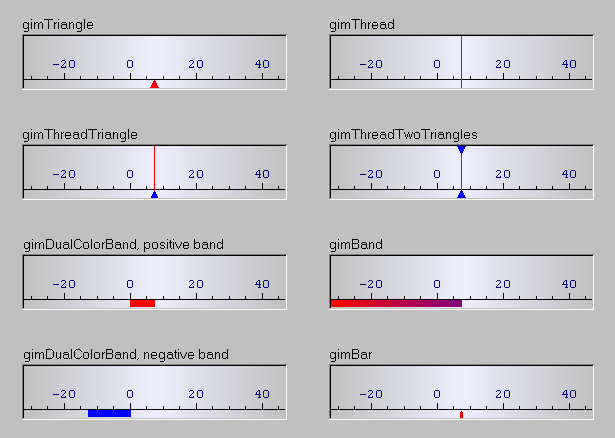

The property IndexMode specifies how the value of the gauge is visualized. The following image shows all seven modes. Please note that in the gimDualColorBand mode, the displayed band changes its color if it crosses the GaugeZero threshold. The colors of the index is controlled by the properties ColorIndex1 and ColorIndex2.

Last Update: 2012-Okt-20
