FrameStyle


Unit: SDL_colorscale
Class: TColorScale
Declaration: property FrameStyle: TFrameStyle;

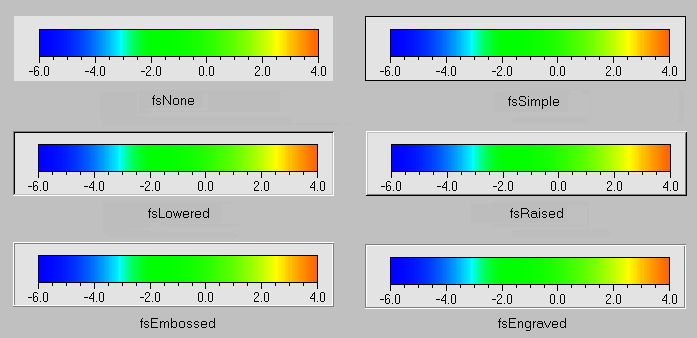

The property FrameStyle defines the style of the box enclosing the TColorScale panel. The following styles are available (see also the screen copy below):

fsNone no box at all
fsSimple a single line box around the color scale panel; the color of line is defined by the property ColorOfScale
fsLowered a box which appears to be lowered
fsRaised a box which seem to be raised against its background
fsEngraved an engraved line is drawn around the panel
fsEmbossed the box is formed by an embossed line around panel


Example: This property is used in the following example program (see http://www.lohninger.com/examples.html for downloading the code): colscale


Last Update: 2009-Nov-11
